86MP Closed Loop Series

  • Advantages of high torque

  • Low heat generatio

  • Long life


  • 产品描述
  • 电气参数
  • 机械尺寸
  • 技术服务:0755-86569723

   MP series hybrid stepping motor is a cost-effective stepping motor built by Noke which using the latest new production technology, automated assembly line manufacturing and high-quality raw materials. It has the advantages of high torque, low heat generation, and long life.


Features

1.In addition to standard single-axis motors, Noke MP series hybrid stepping motors are also equipped with double-shaft type, brake type, deceleration type, waterproof type, etc., which can be selected according to different applications.

2.Various specifications of motors can be customized according to the special requirements of users.

Application Area

Noke MP series stepper motor products are widely used in automated production lines, medical equipment, commercial equipment, packaging machinery, intelligent logistics, testing equipment and other fields.



Mode

Specifications

Step

Angle

Rated

Voltage

Phase

Current

Winding

Ohms

Inductanc

mH Typ

Holding

Torque

Rotor

Inertia

Motor

Weight

Motor

Length

°/STEP

V

A

Ω

mH

NM

gcm²

kg

mm

86MP65D14E10

1.8

2.8

4.0

0.7

3.9

3.5

1000

1.8

65+20

86MP80D14E10

1.8

2.2

5.9

0.375

3.4

4.5

1400

2.4

80+20

86MP118D14E10

1.8

2.65

5.9

0.45

6.0

8.5

2700

3.9

118+20

86MP156D14E10

1.8

2.92

5.6

0.7

9.2

12

4000

6.3

156+20

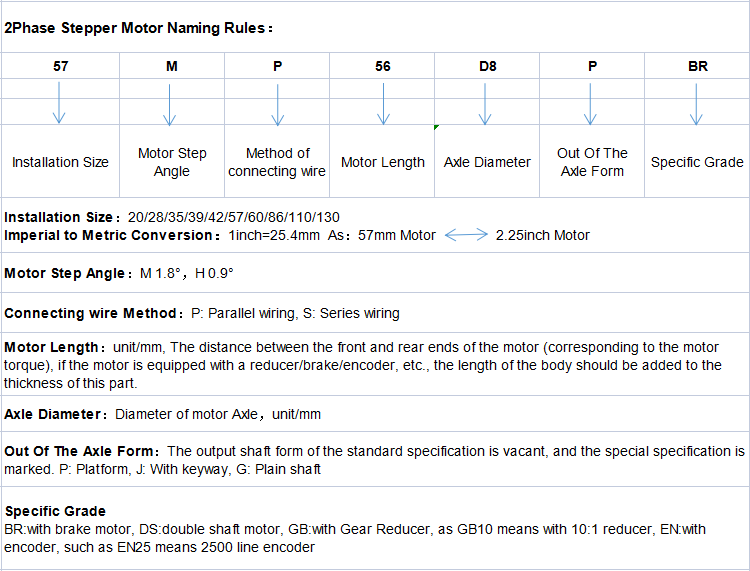

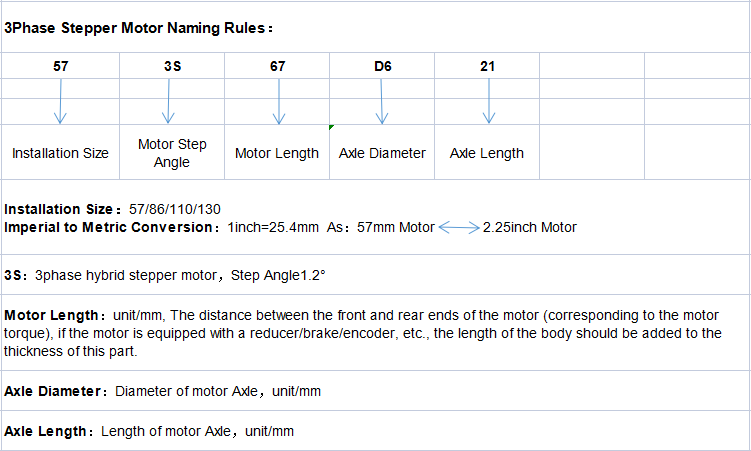

Stepper Motor Naming Rules:
